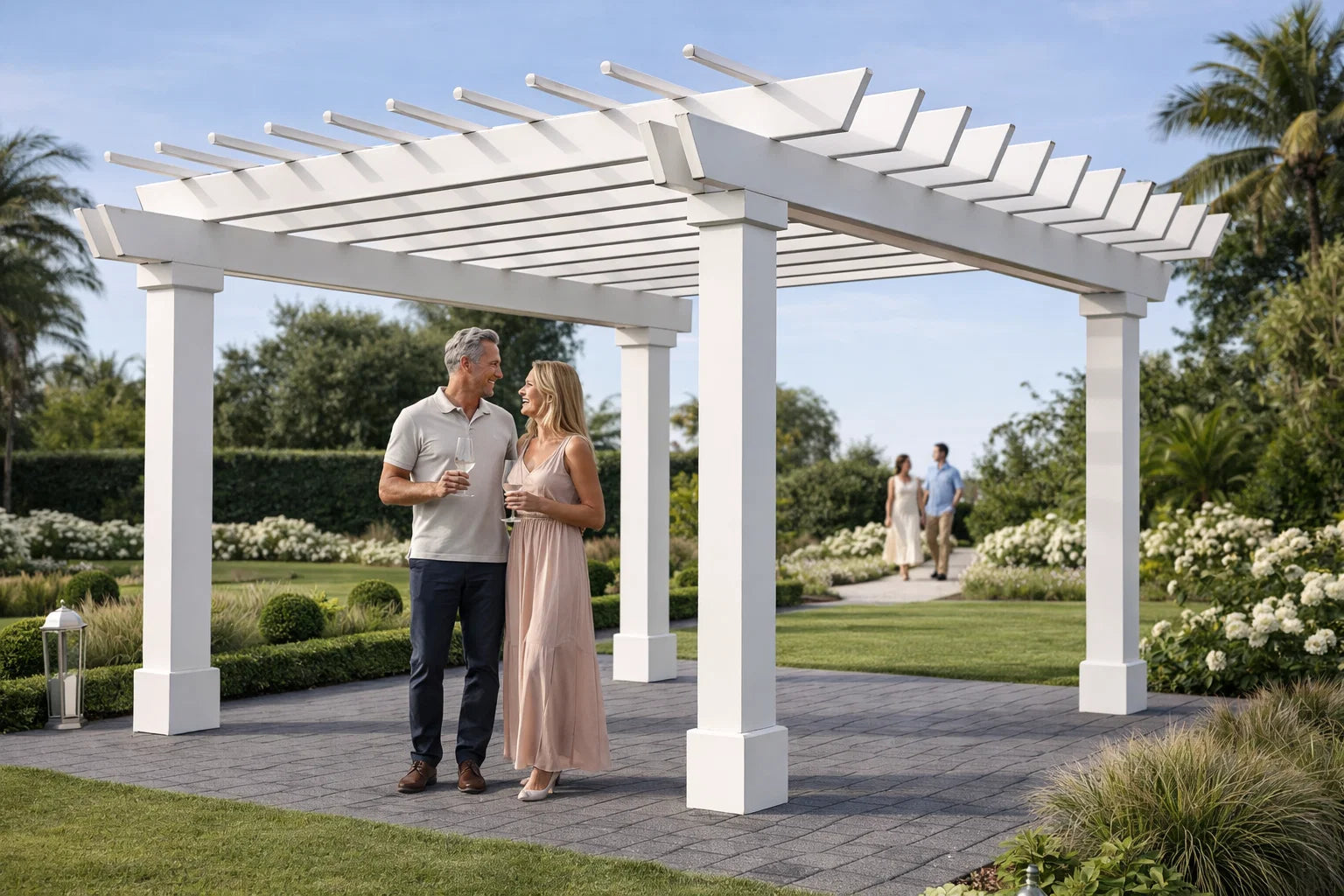

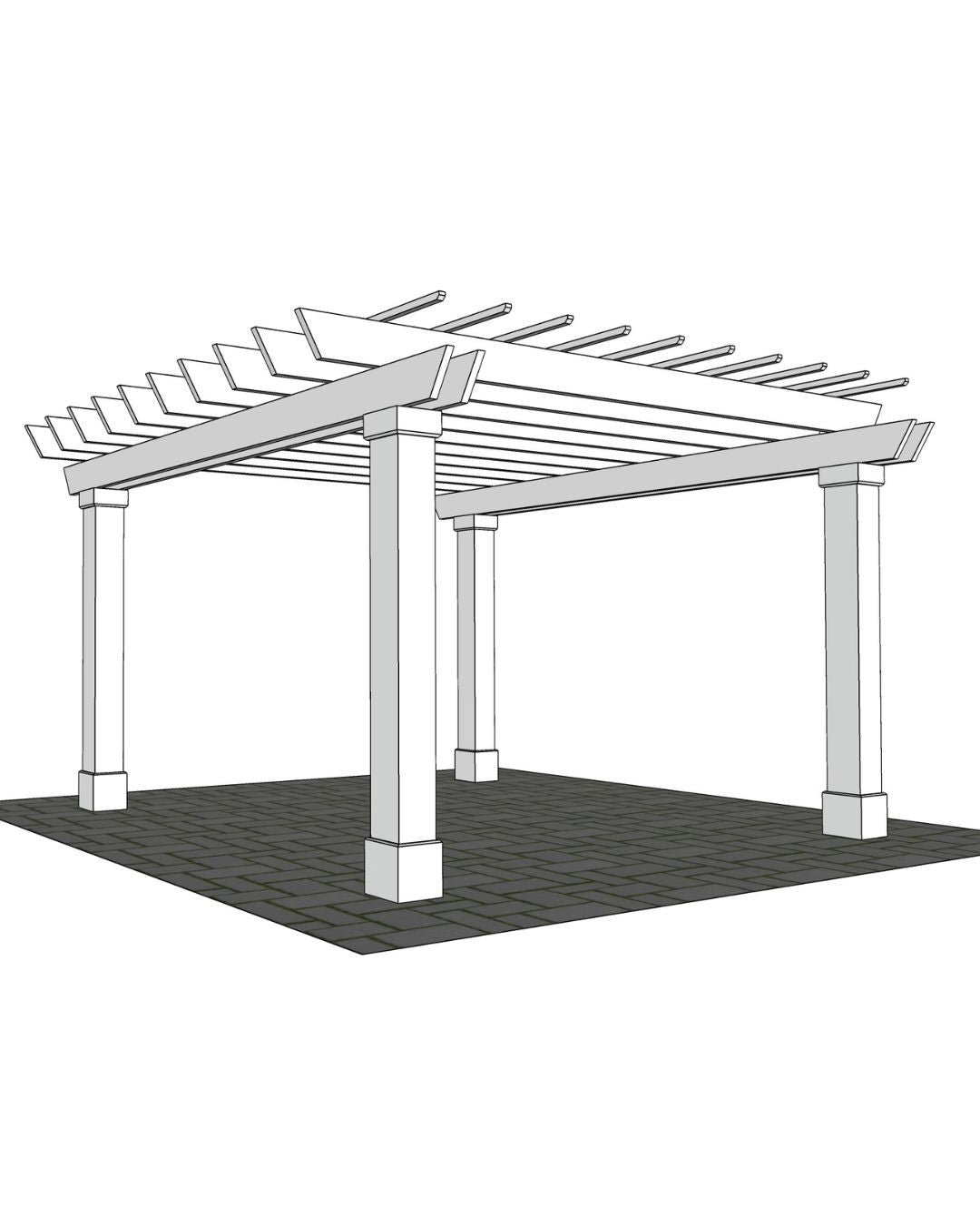

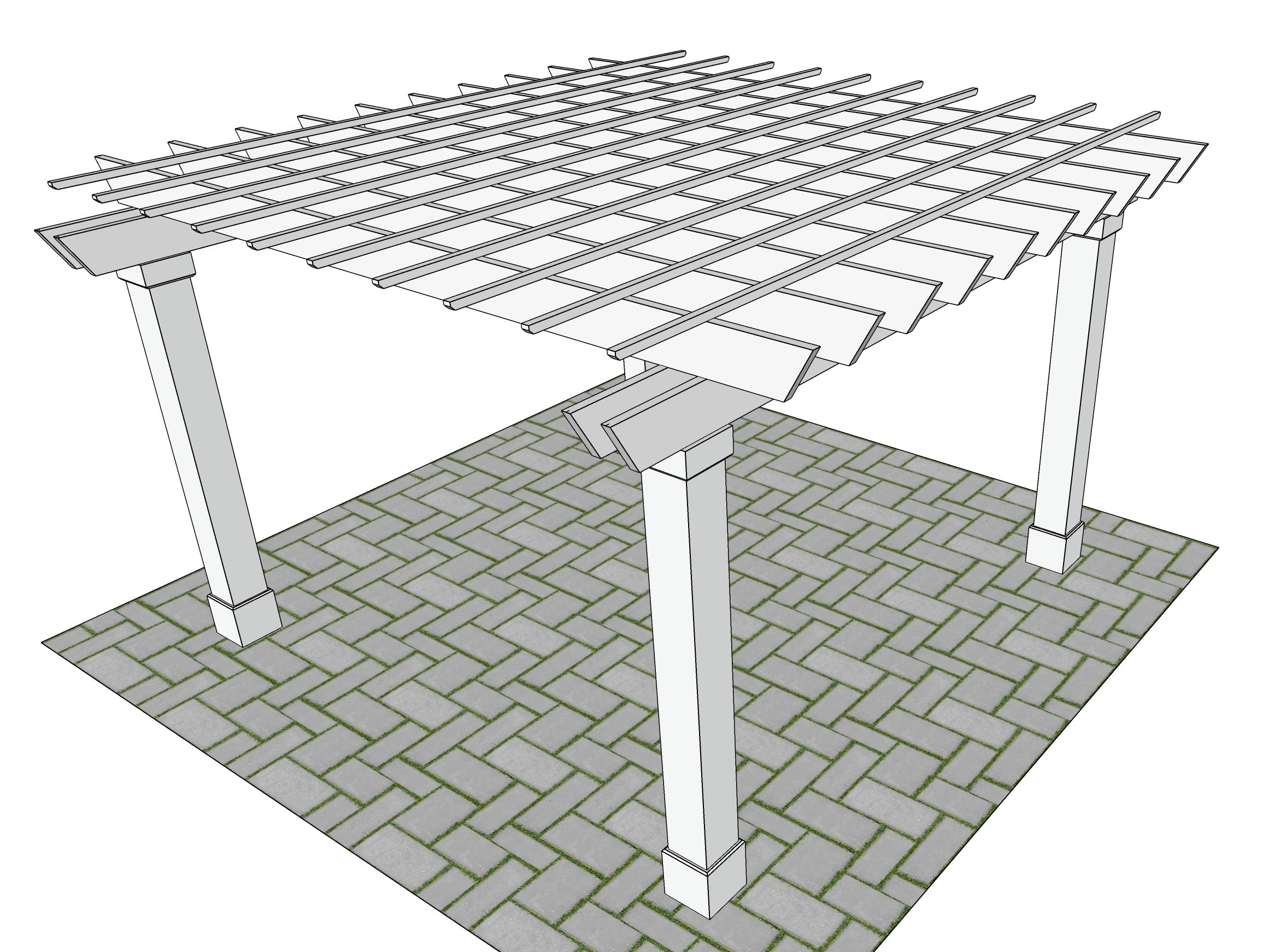

16' Traditional Free Standing PVC Pergola Kit

16' Traditional, Free Standing PVC Pergola Kit: Fabricated with Cellular PVC to resist fading, rotting, warping and last a lifetime without painting.  Cellular PVC readily accepts paint, should you choose to paint it.

Choose from four different profiles: Napa; Craftsman; Spartin; and Axis Step

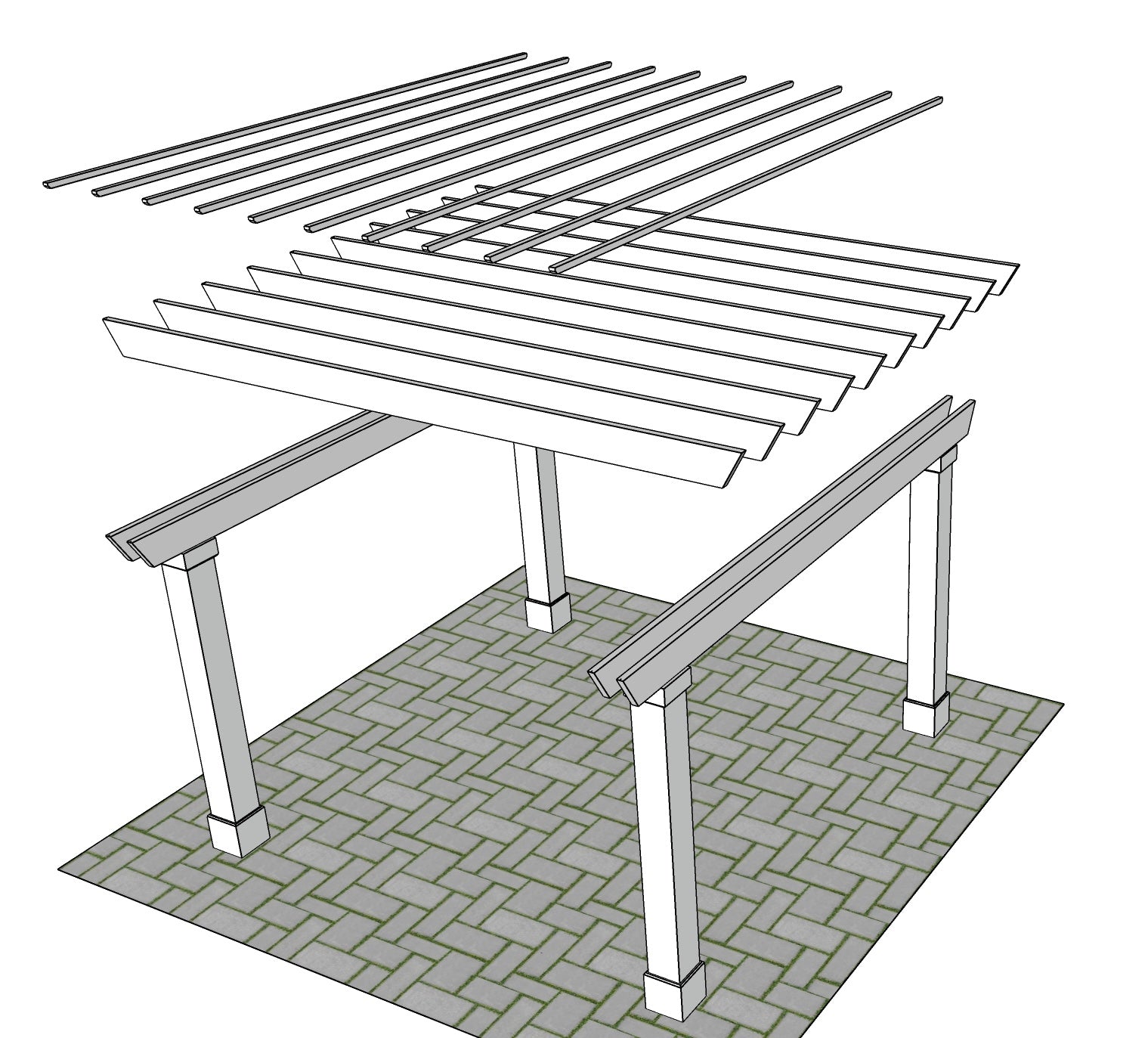

The Pergola Kit includes the following pre-cut components for ease of assembly:
10 - 2" x 10" (1 ⅝" x 9 ¼") x 16' PVC Rafters with aluminum support bars. Each rafter is to be pre-drilled from the top and comes with a spike and finished with PVC plugs to conceal the fasteners.
4- 2" x 10" (1 ⅝" x 9 ¼") x 16' PVC Support Rafters with heavy-duty aluminum support bars.  These include side-mounted hardware, to be concealed with PVC plugs.
10 - 1 ½" x 16' PVC Purlins with hidden mounting screws, and PVC plugs
4 - Either 10" x 8' Square PVC Columns, or 10" x 8' Round Tapered Fiberglass Columns as shown or order the kits without columns and select from any of the styles we offer online (about 40 to choose from)
The structure requires 4 - 6x6 pressure treated wood or steel posts securely mounted which are not included.
Flanges or covers, are provided to cover the holes/gaps at the top of the columns to prevent water from trickling down inside, offering additional protection and durability.

Contact us for assistance selecting the right components for your custom sizing needs. View our complete installation instructions for step-by-step guidance.
