10" Classic, Square PVC Column

PVC-NTC-10-B-4ft

$285.65 CAD
Shipping calculated at checkout.
Height
Capital & Base Chosen

Pickup available at Elite Trimworks Corp

Usually ready in 2-4 days

10" x 10" PVC Square Column Wrap - Probably the best value you'll find on the net! -- PVC column wraps are quick and easy to install as well as lightweight, strong and paintable. They hold up to warping, shrinkage, decay, and insects and don't need to be painted. Our PVC wraps are made with premium "Free Rise" cellular PVC. The shaft is shipped in four easy-to-cut-to-size panels. All you need is a chop saw and basic carpentry tools to install. We make these in large production runs, and we ship them out fast.

Specifications

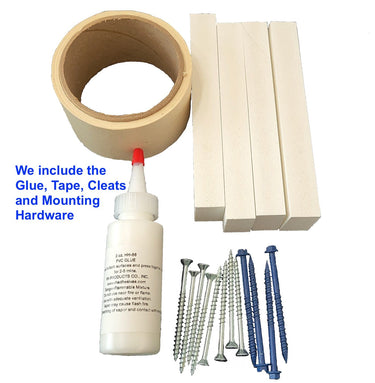

Comes complete with 3 oz of PVC adhesive, tape, installation cleats, mounting hardware and instructions.

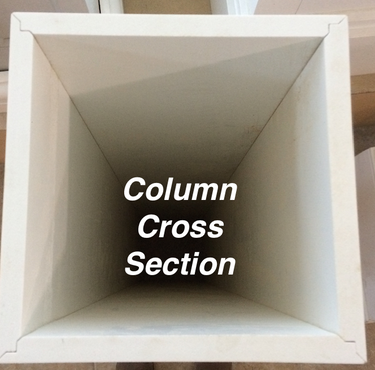

The column shaft is made from four ½” thick PVC panels with a lock mitre joint for easy glue assembly. Its actual outside dimensions are 9 ⅜” and 8 ¼” square inside.
The Ultra-smooth Premier Box Capital and Base set are ¾" thick, which adds 1 ½" inches to the shaft's thickness, making the overall footprint 11”.  For columns 4 to 6 feet high, both the capital and base are 3 ⅝” high, and for columns 8 feet or higher, the base is 7 ½” tall.

The 4ft column shafts are true 47" and the 8ft column shafts are true 95", which will be 48" / 96" once the Capital has been added.

>PVC Column Photo Gallery         >Capital & Base Drawings

Options

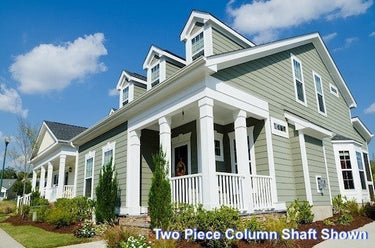

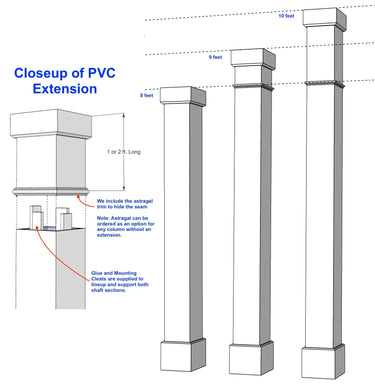

Our 9ft (Two-Section) columns are made specifically for easy UPS shipping! The column shaft is shipped in two sections ( 8ft + 1ft = 9ft ) that fit together on site.  The 9ft (Two-Section) column always comes with an astragal trim and mounting cleats as shown on the drawing.

Our 10ft (Two-Section) columns are made specifically for easy UPS shipping! The column shaft is shipped in two sections ( 8ft + 2ft = 10ft ) that fit together on site.  The 10ft (Two-Section) column always comes with an astragal trim and mounting cleats as shown on the drawing.

Georgian and Astragal Trim upgrade.
A Tuscan Capital and Base set.
Columns are available with a perfectly matching Newel Post to support railings or made as Pilasters to go up against a wall.

Shipping Info.

Free Shipping for orders of 2 columns or more (up to 8ft or 9ft or 10ft Two-Section) or $29 Flat Rate for one. Columns 9, 10, or 12 feet (Single Section) or over must be shipped by transport truck, call for pricing.
Limitations to our Shipping Specials

Production Time

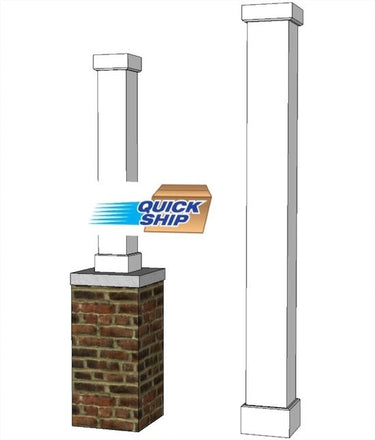

8ft, 9ft, and 10ft are Quick Ship, the rest are made to order
